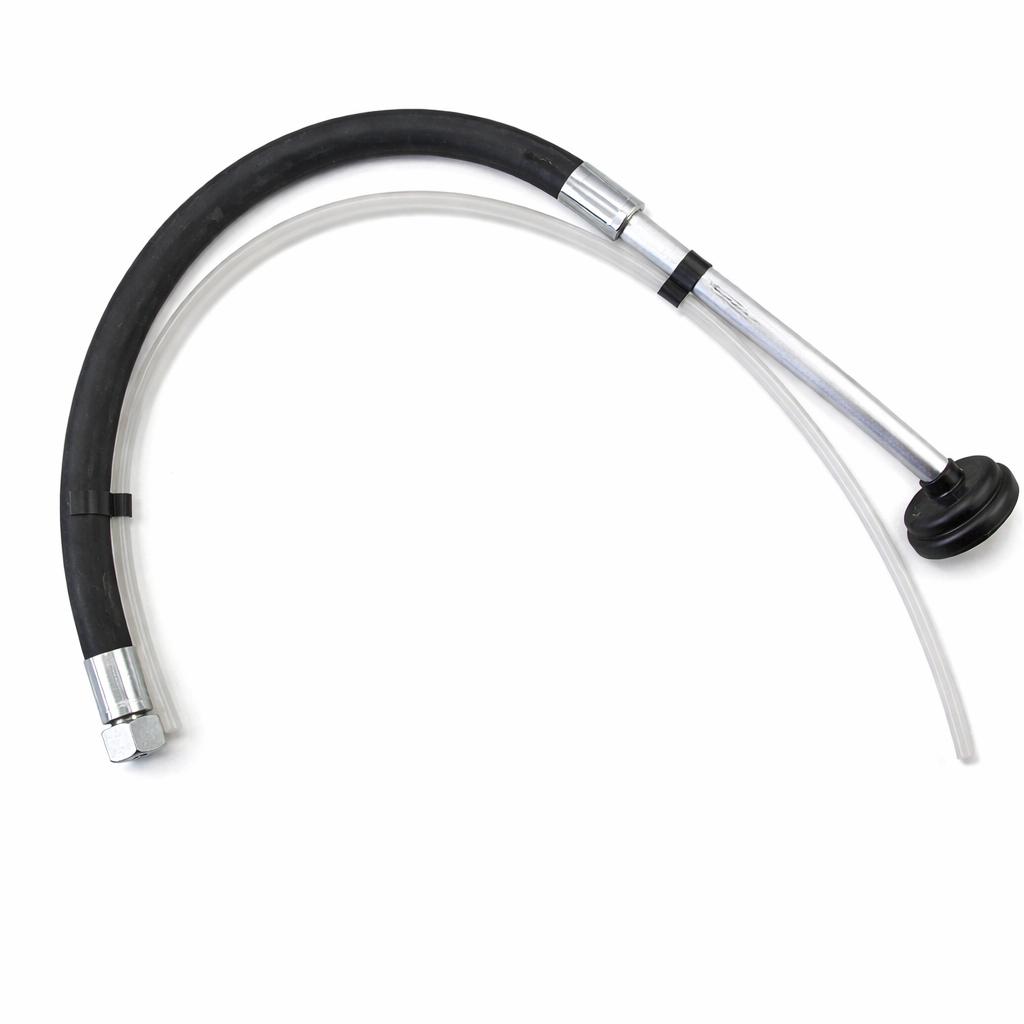

ASAB DP23 - Suction Hose/Return Hose Assembly

Part Code: ASAB-SDP23-SHAC

Introducing the ASAB DP23 Suction Hose Assembly — the full, ready-to-fit suction pickup package for the ASAB DP23, combining the correct suction hose and suction filter into one complete inlet solution. Built for reliable material feed, this complete assembly is the go-to replacement when you want to restore fast priming, stable flow, and clean inlet filtration without piecing parts together on the bench.

This complete kit is made up of:

• Suction Hose (Part #01) — ASAB-SDP23-01

• Suction Filter (Part #05) — ASAB-SDP23-05


A tired suction hose or clogged/damaged suction filter is one of the most common causes of slow priming, surging, bubbles in the line, and pressure instability. Replacing the complete inlet set removes the guesswork and ensures the DP23 has a solid, airtight suction path with proper filtration — keeping debris out of the pump and helping the unit run smoother for longer. Whether you’re doing preventative maintenance, rebuilding a pump setup, or sorting a DP23 that won’t stay primed, the ASAB Suction Hose Assembly is a workshop-ready solution to keep your system feeding cleanly and consistently.

Key Benefits

• Complete suction inlet solution for ASAB DP23 systems

• Combines suction hose + suction filter for a ready-to-install assembly

• Helps restore fast priming and consistent material feed

• Reduces risk of air ingress that causes pulsing, surging, or pressure drop

• Improves pump protection by filtering debris before it reaches valves/diaphragm

• Ideal for replacing worn, softened, split, or kinked suction components

• Commercial-grade construction suited to job-site use

What’s Included

• ASAB DP23 Suction Hose (Part #01) — ASAB-SDP23-01

• ASAB DP23 Suction Filter (Part #05) — ASAB-SDP23-05

• Supplied as ASAB DP23 Suction Hose Assembly — ASAB-SDP23-SHAC

Safety Check

• Depressurise fully before service: Switch to prime/relief, trigger the gun into a waste bucket, and confirm pressure is at zero.

• Flush before removal: If the unit has been spraying, flush to a safe state to minimise paint/solvent exposure during changeover.

• Seal it up properly: Ensure all joints are tight and sealing faces are clean — a tiny air leak will cause prime problems.

• Keep the filter clean: Check the suction filter condition regularly to prevent starvation/cavitation and premature wear.

• Avoid kinks and sharp bends: Route the suction hose smoothly so it can’t collapse or restrict under suction.

• Prime and test gradually: Prime first, confirm steady flow with no bubbles, then return to operating pressure.

ASAB – Engineered for Performance, Built to Last.
