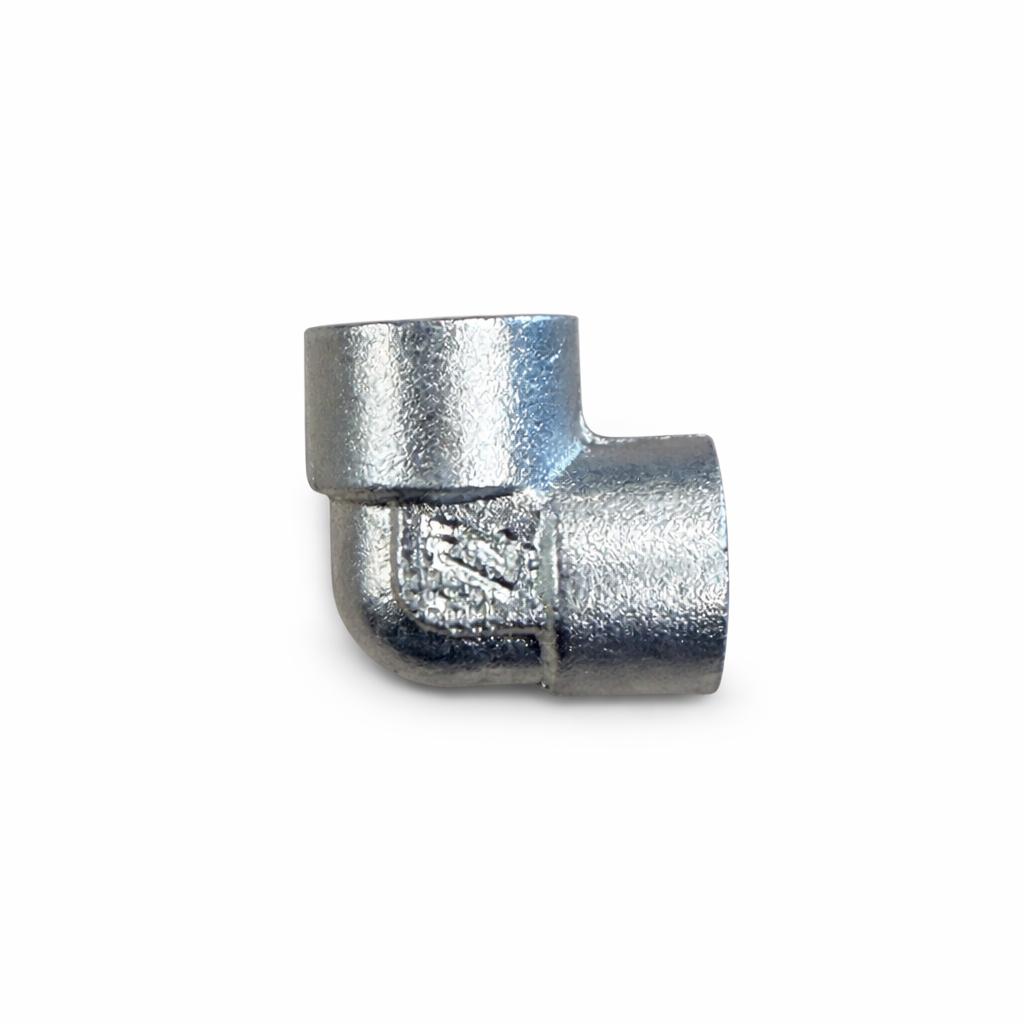

ASAB High Pressure Fittings #21 - 90° Elbow | 1/4"F x 1/4"F | 7250psi

Part Code: ASAB-F-HPF21

Introducing the ASAB HPF21 90° Elbow — built for high-pressure airless systems where you need a compact, rock-solid right-angle connection without compromising sealing reliability. Perfect for professional setups, this elbow is ideal in tight spaces, at manifold blocks, near gauges/regulators, or anywhere you need cleaner hose routing without forcing the hose to bend and fight you.

Rated to 7250 PSI, the 90° elbow helps redirect line direction to reduce hose strain, prevent kinking, and protect threads and sealing faces from side-load stress. It’s a simple fitting that can make a big difference to hose life and day-to-day usability — especially when you’re running hard pressure and don’t want a connection point getting flogged out.

Whether you’re cleaning up hose routing, building a tidy high-pressure manifold, or replacing a worn elbow that’s started to weep under load, the ASAB HPF21 is a job-site-ready solution for serious high-pressure airless work.

Key Benefits

• Rated to 7250 PSI for high-pressure airless applications

• 90° elbow for improved hose routing in tight spaces

• 1/4" Female x 1/4" Female configuration suits common high-pressure connections

• NPT thread for secure, tapered sealing on compatible high-pressure fittings

• Reduces hose strain and side-load stress on threads and sealing faces

• Helps prevent kinking and premature hose wear in awkward routing areas

• Heavy-duty construction for commercial job site use

What’s Included

• ASAB 7250 PSI 90° Elbow 1/4" F x 1/4" F (NPT) — ASAB-F-HPF21

Safety Check

• Depressurise fully before fitting changes: Switch to prime/relief, trigger the gun into a waste bucket, and confirm pressure is at zero.

• High-pressure injection hazard: Never check leaks with your hand — use cardboard or a rag and keep clear of pressurised joints.

• Match thread types correctly: Confirm all mating components are 1/4" NPT (do not mix NPT with BSP/NPSM).

• Pressure rating matters: Ensure all connected hoses and fittings are rated to 7250 PSI or higher.

• Inspect threads and sealing faces: Replace damaged components — cracked or cross-threaded fittings can fail under pressure.

• Pressure test gradually after installation: Start at low pressure, check for leaks, then increase slowly to operating pressure.

ASAB – Engineered for Performance, Built to Last.
