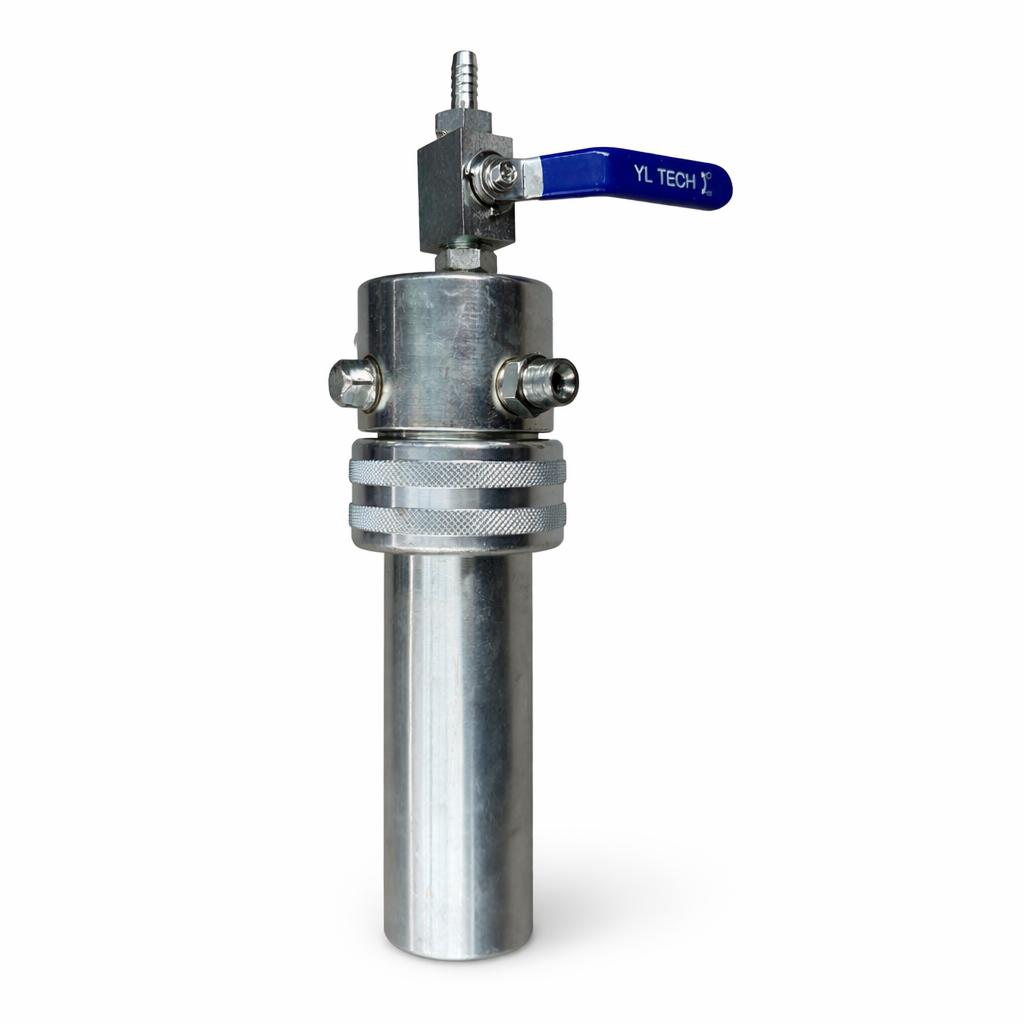

ASAB P Series - Ultra High Pressure Filter Assembly (10,000psi)

Part Code: ASAB-PUHPFA

Introducing the ASAB Pneumatic Ultra High Pressure Filter Assembly — a heavy-duty inline filtration system built for pneumatically driven, ultra-high-pressure spray and pumping setups where clean material and reliable flow are non-negotiable. Designed to protect downstream components, this filter assembly helps stop debris before it reaches guns, tips, hoses, valves, and sensitive control components, improving finish quality and reducing annoying blockages and downtime.

In ultra-high-pressure work, even small contamination can turn into big problems fast — blocked tips, unstable spray patterns, and premature wear. The ASAB-PUHPFA helps maintain a cleaner, more stable supply by filtering material at the right point in the line, supporting consistent delivery under load and helping extend the service life of high-pressure components.

Whether you’re upgrading an existing UHP pneumatic setup, replacing a tired filter body, or building a more reliable system from the ground up, the ASAB-PUHPFA is a job-site-ready solution for serious high-pressure filtration.

Key Benefits

• Built for pneumatic ultra-high-pressure applications where filtration is critical

• Helps prevent tip blockages and spray pattern disruption caused by debris

• Protects high-pressure components: guns, hoses, valves, and fittings

• Supports more consistent flow and smoother operation under load

• Reduces premature wear and downtime from contamination-related failures

• Service-friendly design for routine cleaning and element changes

• Heavy-duty construction suited to commercial job-site use

What’s Included

• ASAB Pneumatic Ultra High Pressure Filter Assembly — ASAB-PUHPFA

Safety Check

• Depressurise fully before servicing: Isolate air/hydraulic drive, bleed pressure, trigger into a waste bucket, and confirm system pressure is at zero.

• High-pressure injection hazard: Never check leaks with your hand — use cardboard/rag and keep clear of pressurised joints.

• Confirm pressure rating compatibility: Ensure the filter assembly and all connected hoses/fittings are rated for your system’s maximum working pressure.

• Match thread types correctly: Confirm port size and thread standard (BSP vs NPT) before installation—don’t force mismatched threads.

• Maintain the filter element: Clean/replace the screen/element regularly to avoid starvation, pulsation, and pressure drop.

• Pressure test gradually after install: Start low, check for leaks, then increase slowly to operating pressure.

ASAB – Engineered for Performance, Built to Last.
