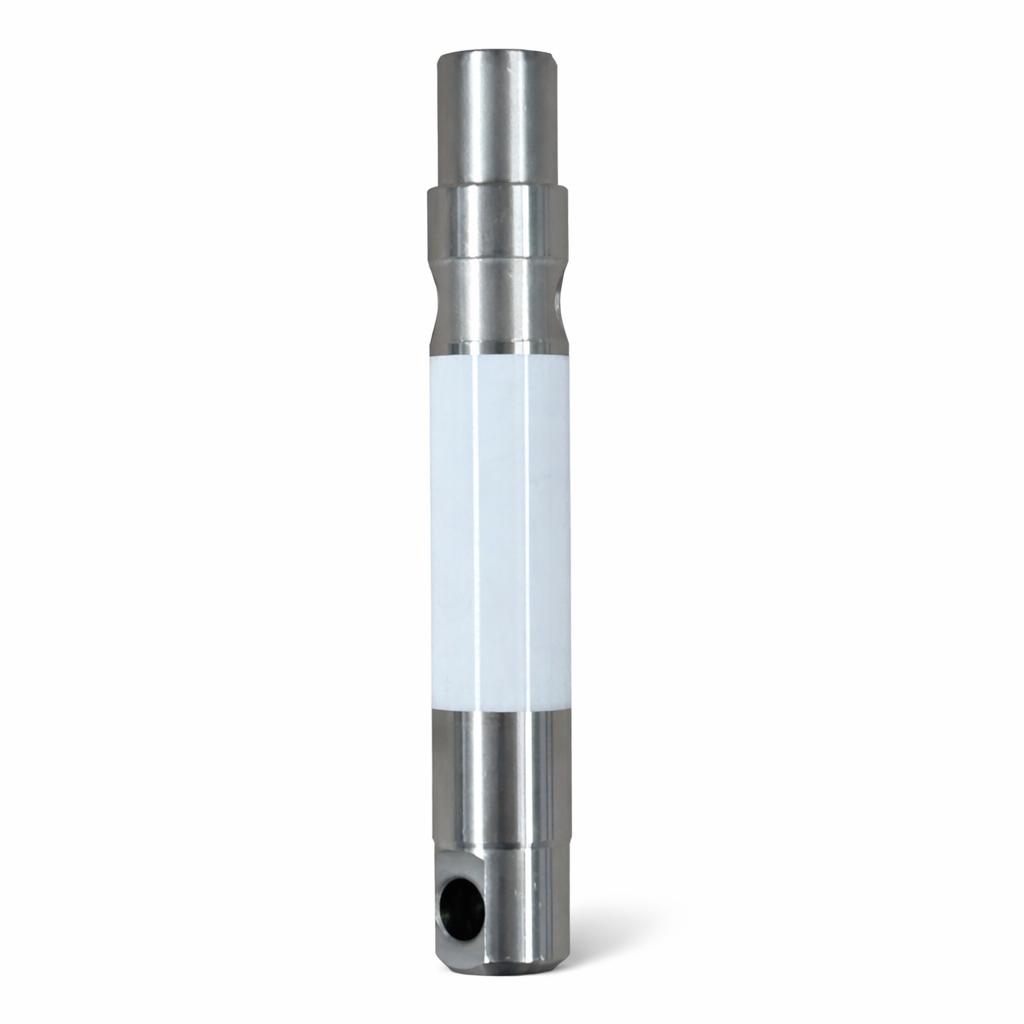

ASAB S Series - Replacement S1/S3 Ceramic Piston Rod

The S1/S3 Piston Rod is a core mechanical component in the ASAB S1 and S3 fluid section, transferring the drive movement into the pump to generate consistent stroke action and pressure. It needs to stay straight, smooth, and properly aligned to protect the packings, maintain an even seal, and keep the sprayer delivering steady output under load.

If you’re seeing premature packing wear, leaking at the packings, an uneven stroke feel, or pressure performance that doesn’t improve even after seal/valve servicing, a worn or scored piston rod is often the underlying issue. Replacing the rod restores proper contact surfaces and alignment—so the pump isn’t chewing through seals for sport.

Key features

• Transfers drive motion into the pump for reliable stroke and pressure generation

• Helps maintain correct packing alignment and consistent sealing performance

• Ideal replacement when the rod is scored, pitted, bent, or worn, or if packings fail prematurely

• Suits ASAB S1 / S3 pump assemblies (configuration dependent)

What’s included

• 1 x S1/S3 Piston Rod (service replacement)

Safety Check

• Relieve all fluid pressure before opening the fluid section (follow the sprayer’s pressure relief procedure).

• Isolate power (unplug/disconnect) before working on the pump or drive components.

• Wear PPE: eye protection and chemical-resistant gloves—especially during flushing and solvent handling.

• Pinch/moving parts hazard: keep hands clear of the drive and linkage areas during checks and reassembly.

• Restart carefully: prime at low pressure first, confirm smooth operation and no leaks, then return to normal operating pressure.
