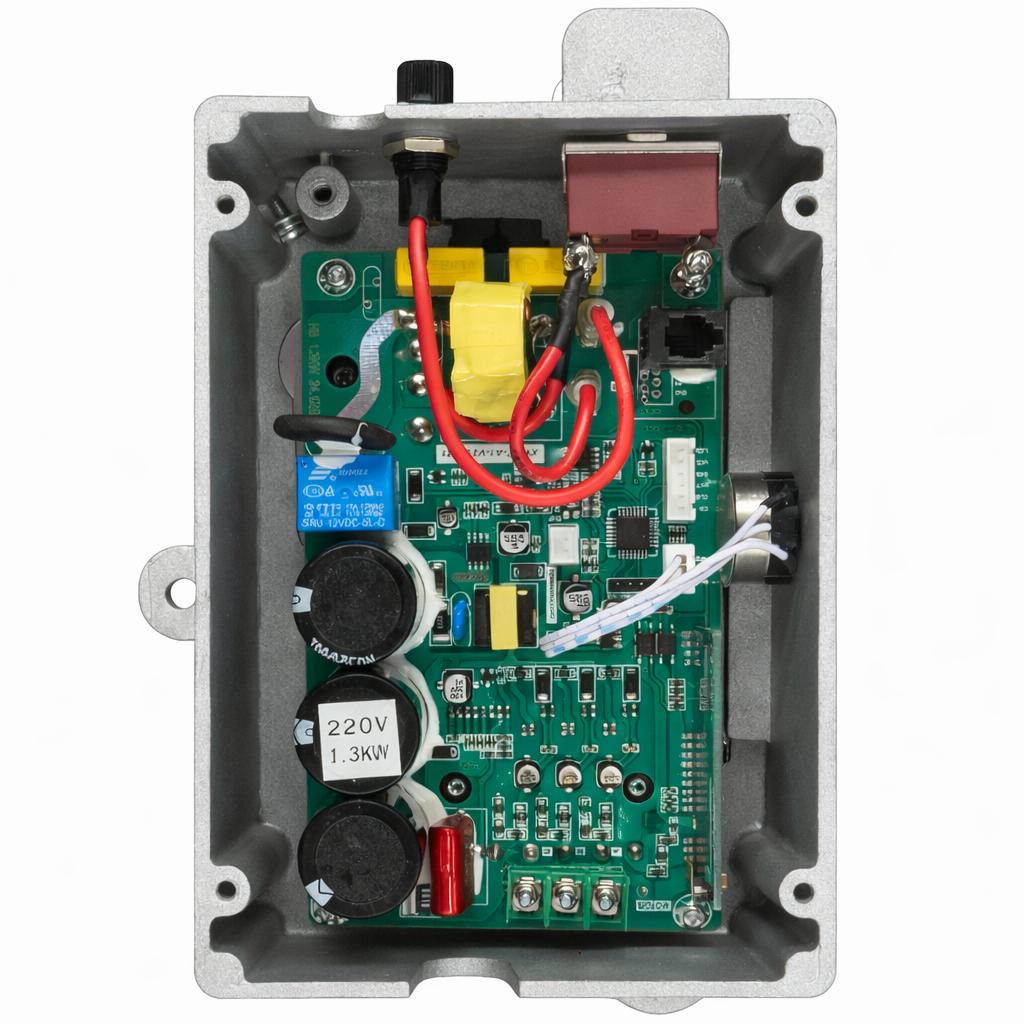

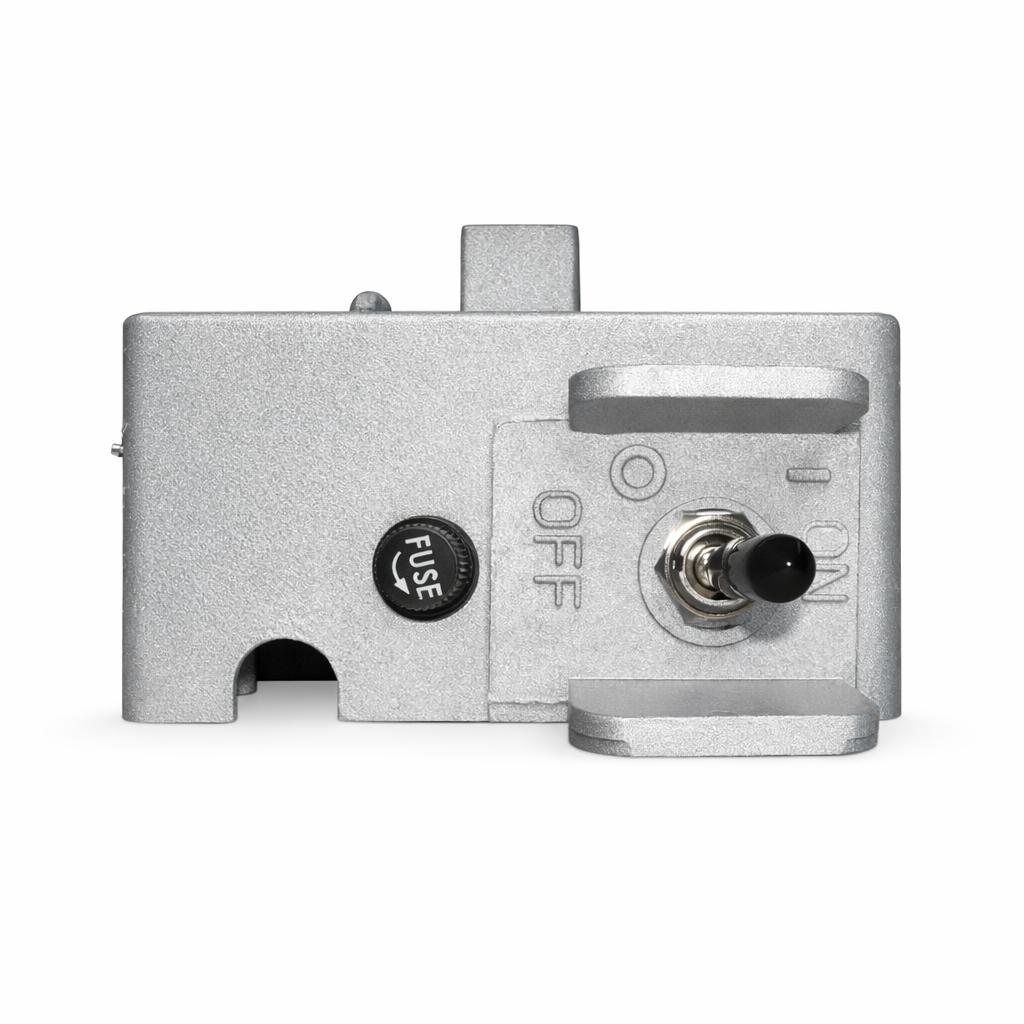

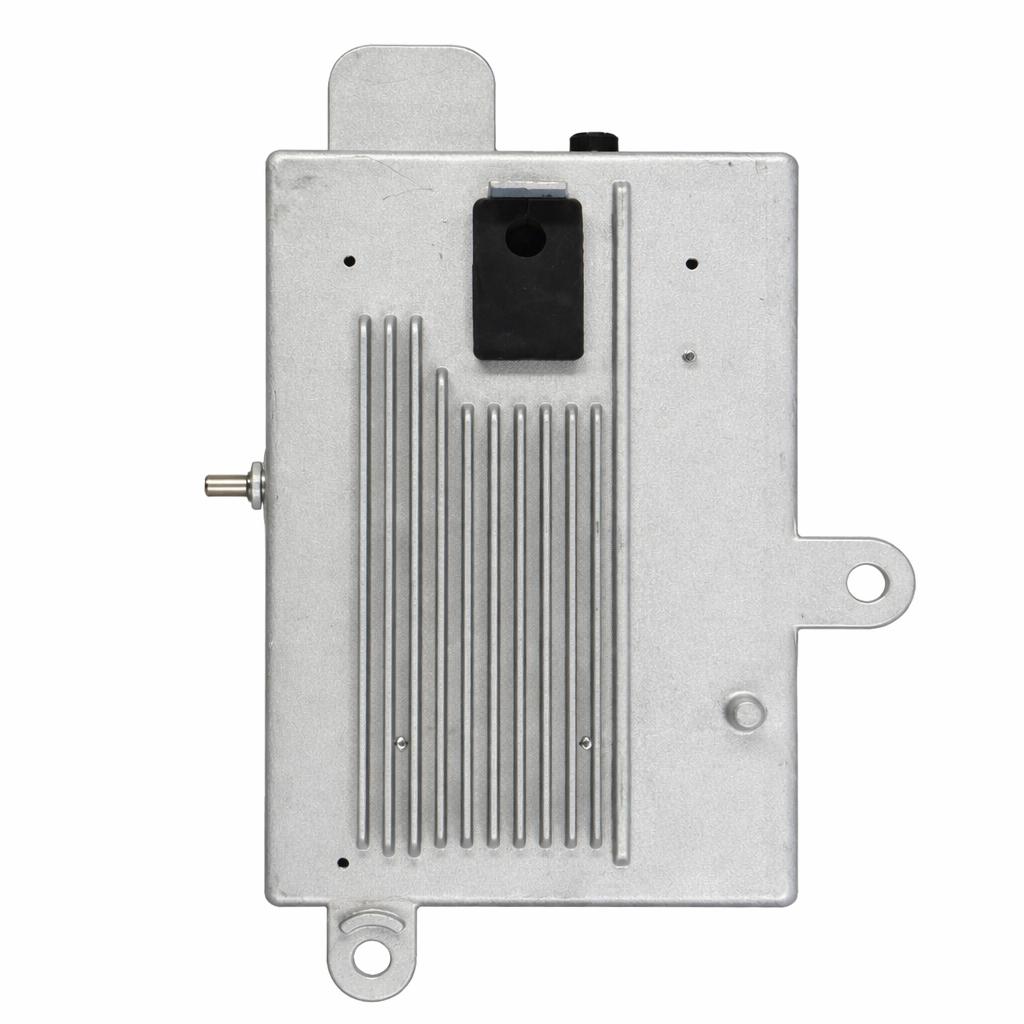

ASAB S Series - S3 Replacement Control Board

Part Code: ASAB-SCBS3

Introducing the ASAB S3 Control Board — the main electronic control module designed to manage and regulate operation of the ASAB S3 airless sprayer. This board handles key functions like motor drive control, pressure regulation response, user control inputs, and system protection logic, helping the unit maintain smooth output and dependable performance under load.

If an S3 is showing symptoms such as no power/no start, erratic pressure control, motor hunting/surging, intermittent cut-outs, unresponsive controls, or recurring fault behaviour, the control board is a common service replacement once you’ve ruled out the basics (power lead, on/off switch, transducer/pressure sensor, motor/brushes, wiring, and connectors). The ASAB S3 Control Board is built as a direct replacement to get the sprayer back to stable, job-ready operation.

Whether you’re bringing a dead machine back to life, fixing unstable pressure behaviour, or replacing a board that’s taken on moisture, dust, or an electrical spike, the ASAB S3 Control Board is a workshop-ready solution to get an S3 back online.

Key Benefits

• Direct replacement control board for ASAB S3 sprayers

• Helps restore stable pressure regulation and consistent motor response

• Supports correct operation of system protection / shutdown logic

• Ideal for electrical symptoms: no start, cut-outs, surging, erratic control behaviour

• Service-friendly replacement for fast turnaround in the workshop

• Designed for commercial-use reliability in harsh site conditions

• Helps reduce downtime by returning the unit to proper regulation and control

What’s Included

• ASAB S3 Control Board — ASAB-SCBS3

Safety Check

• Isolate power completely: Unplug the unit before opening any electrical housing.

• Depressurise first: Prime/relief on, trigger into a waste bucket, confirm pressure is at zero before servicing.

• Capacitor discharge hazard: Some boards/drives can hold charge—allow time after unplugging and follow safe discharge practices.

• ESD precautions: Use an anti-static strap or grounding method when handling the board to avoid static damage.

• Check connectors carefully: Don’t force plugs—inspect for burnt pins, corrosion, loose terminals, or damaged harnesses before refit.

• Test progressively: Reassemble covers, power on, confirm control response at low pressure first, then ramp up slowly.
