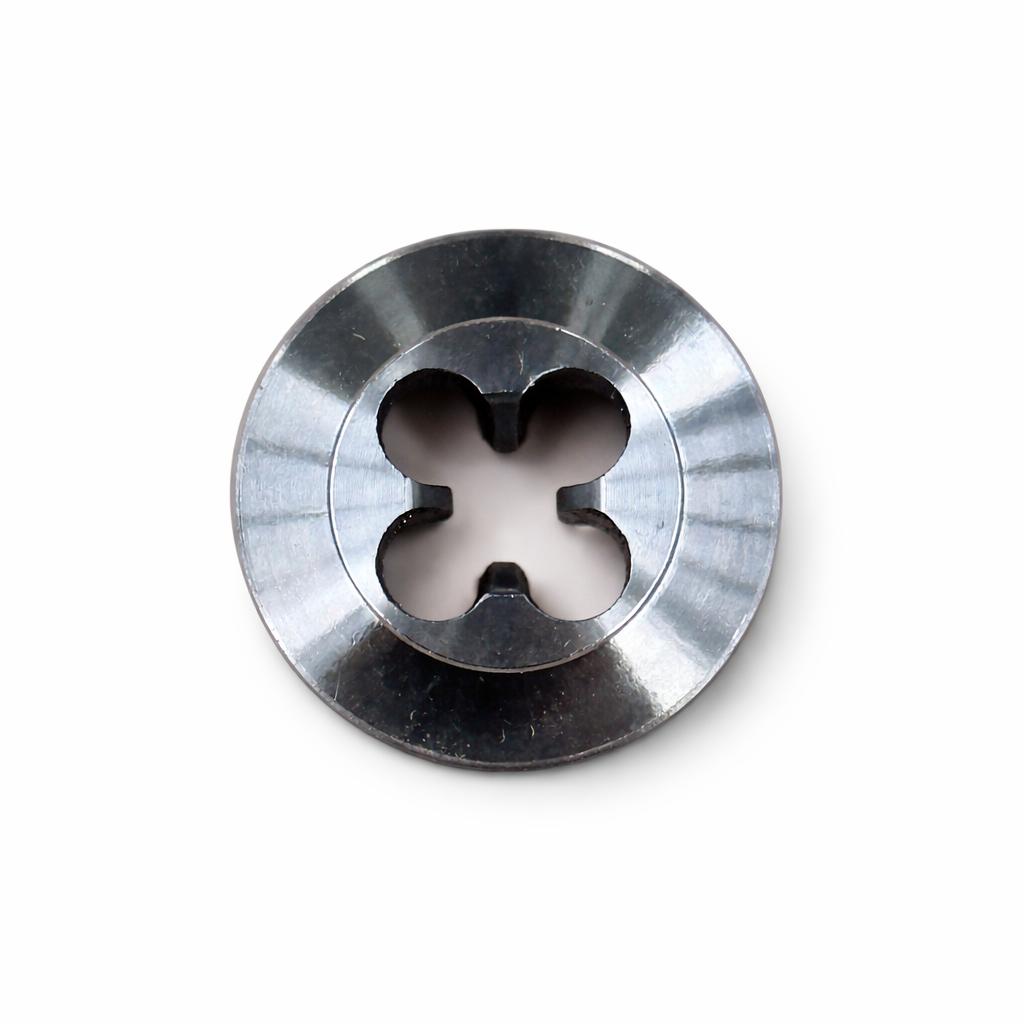

ASAB S Series - Replacement S7 Ball Cage

The S7 Ball Cage is a key check-valve component in the ASAB S7 fluid section. Its job is to locate and guide the check ball so it travels correctly and seals cleanly on the seat every stroke. When it’s doing what it should, you’ll see faster priming, steadier pressure, and smoother material flow—the kind of behaviour everyone appreciates.

If the sprayer is slow to prime, pulsing, losing pressure, or showing signs of backflow/bypass, a worn, damaged, or debris-affected ball cage is a common culprit. Replacing it helps restore proper check action and keeps the pump operating consistently under load.

Key features

• Maintains correct check ball alignment and travel for reliable sealing

• Supports stable pressure, improved priming, and consistent flow

• Ideal replacement when the cage is scored, cracked, worn, or won’t clean up properly

• Suits ASAB S7 pump check-valve assemblies (configuration dependent)

What’s included

• 1 x S7 Ball Cage (service replacement)

Safety Check

• Relieve all fluid pressure before loosening any fluid-section components (follow the sprayer’s pressure relief procedure).

• Isolate power (unplug/disconnect) before servicing the pump.

• Wear PPE: eye protection and chemical-resistant gloves—especially when flushing or handling solvents.

• Injection hazard: never check for leaks with your hand; high-pressure fluid can penetrate skin.

• Test carefully after reassembly: prime at low pressure first, confirm sealing/no leaks, then return to normal operation.
