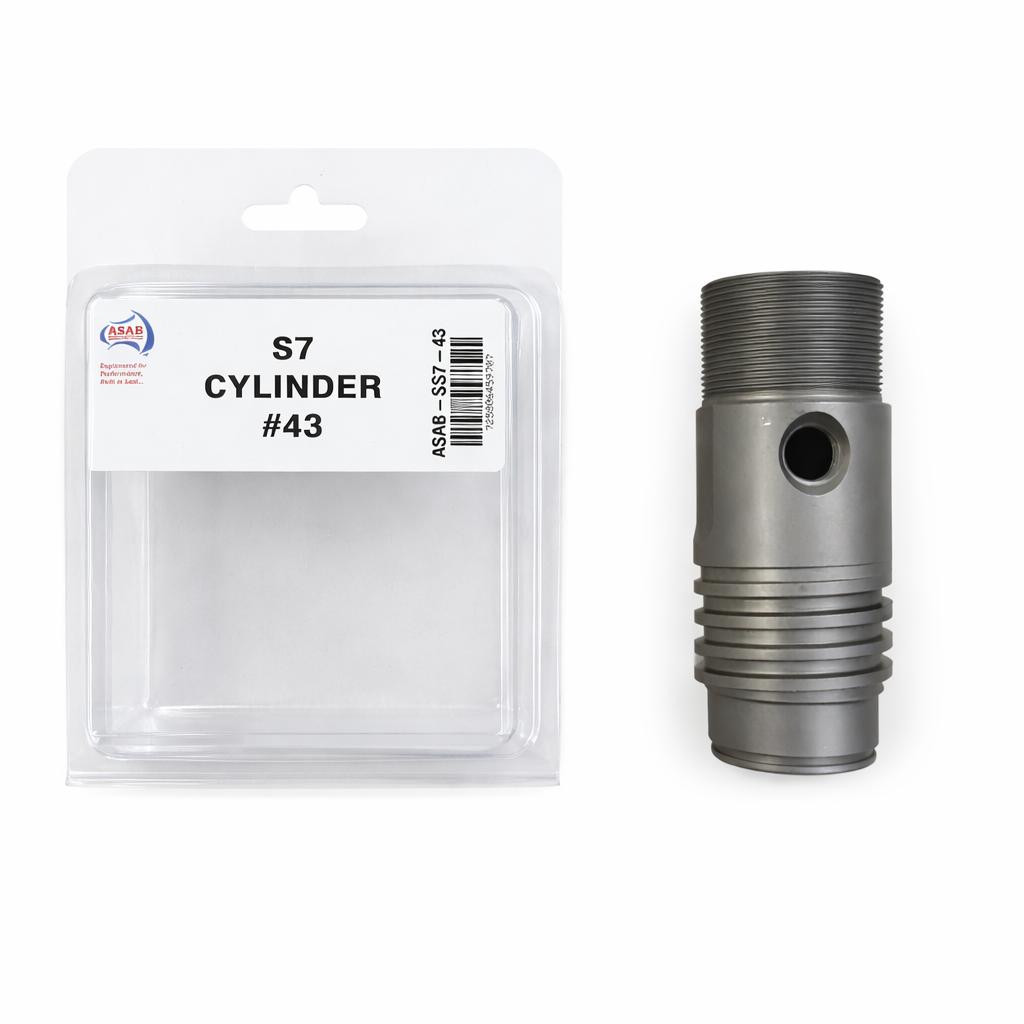

ASAB S Series - S7 Replacement Cylinder

The ASAB S7 Cylinder is a core pump component engineered to support the high-output performance expected from the S7 platform. As the primary wear surface for piston movement and sealing, a healthy cylinder is essential for maintaining consistent pressure, reliable prime, and smooth delivery—especially when spraying heavier coatings and running longer hose lengths.

Key benefits

• Restores pump efficiency by returning the piston chamber to proper working condition

• Improves pressure stability for a more consistent spray pattern and reduced pulsing

• Supports reliable priming and pressure hold, particularly under heavy-duty use

• Extends pump service life by replacing a worn/scored cylinder before it damages packings and piston components

• Built for S7-class performance demands on large projects and regular daily use

Service and fitment notes

• Suits ASAB S7 Series pump assemblies.

• Replace the cylinder if you find scoring, corrosion/pitting, loss of prime, poor pressure hold, rapid packing wear, or recurring pulsation that isn’t resolved by seals/valves.

• Best practice during replacement: inspect/refresh packings, piston rod condition, balls/seats, and inlet/outlet valves to ensure the new cylinder beds in correctly and delivers full performance.

Safety Check
Before any pump strip-down, complete full pressure relief: power off, trigger the gun into a grounded waste bucket, engage gun safety, and open the prime/bleed valve. Allow components to cool, wear eye protection and gloves, and never work on a pressurised fluid section—high-pressure injection injuries are a medical emergency.
